Description

Powerful. Efficient. Silent.

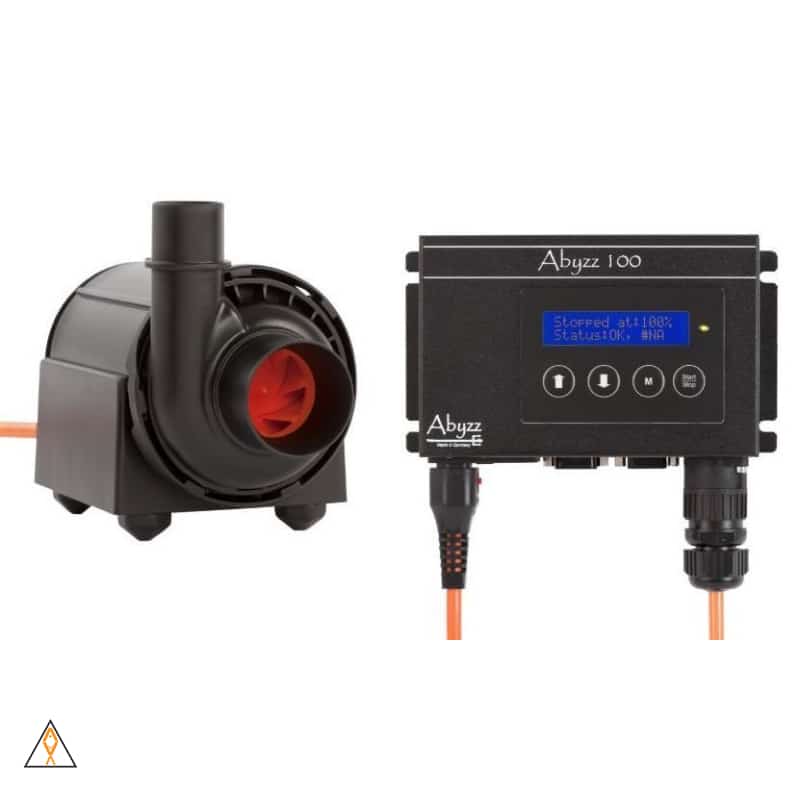

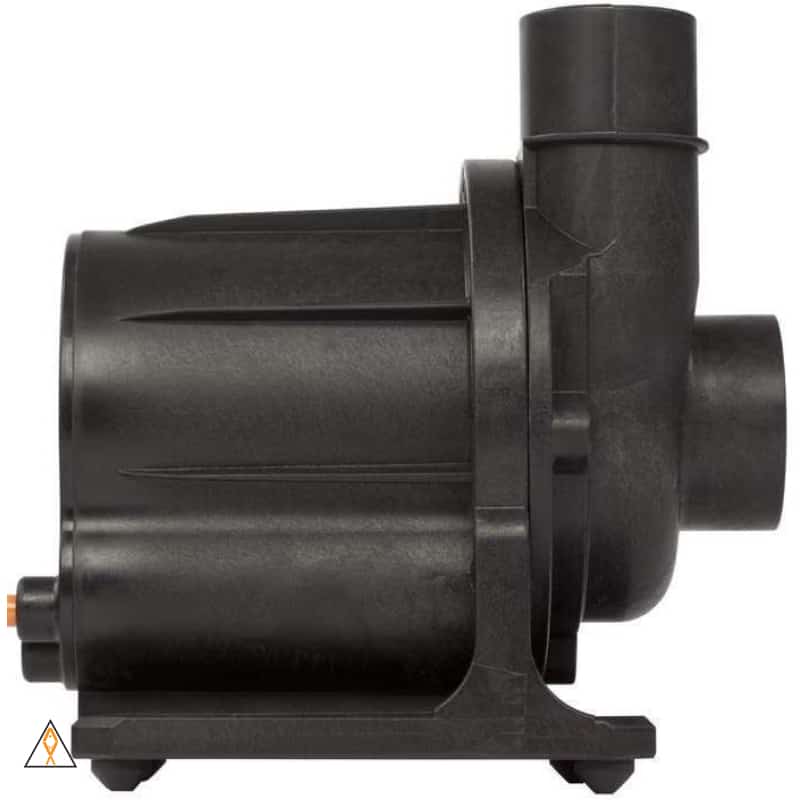

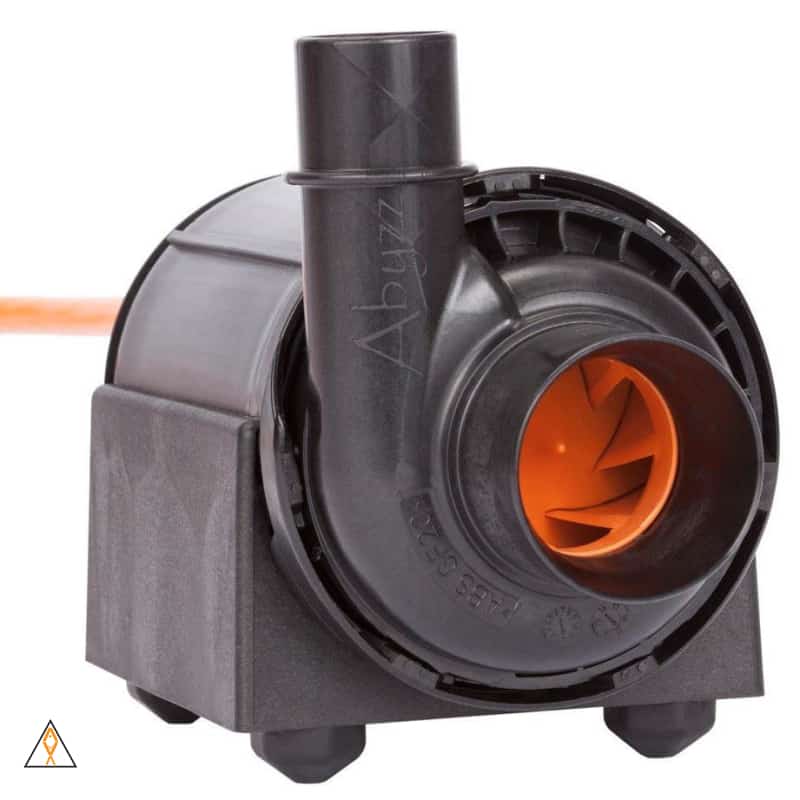

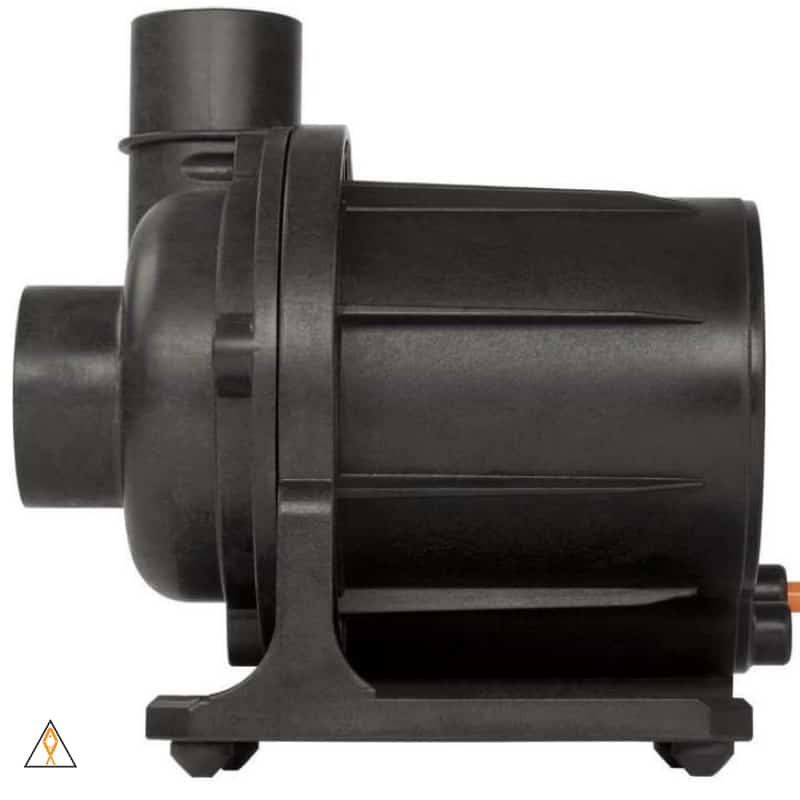

The compact Abyzz pump consists of a programmable, high-performance, menu-driven electronics (driver) and a sine-commutated synchronous motor (pump).

Operation with low voltage allows the safest use in all application areas. The integrated bearing rinse offers optimum protection against calcification and; in conjunction with the silicon carbide bearings used, a titanium rotor and a special carbide shaft, ensures low-maintenance operation.  The processed materials are designed for a long service life and meet the highest requirements and quality standards. The product is developed and produced in Germany.

Extension cables available here.

Replacement parts available here.

Specifications

• Energy saving operation
• Electronically adjustable from 0...100%
• Programmable Abyzz MenuControlled-FlowSequencer (MCFS) integrated (waves, random, etc.)
• Integrated BOOSTMODE
• Illuminated multifunctional display
• Soft start
• Dry run protection
• Silent operation
• Low-maintenance operation
• Power consumption display
• May be installed dry or submerged
• Revolvable water outlet
• Lockable plug contacts
• Suitable for fresh water and salt water
• Lifetime guarantee
• External control interface
• Driver with high quality coating
• Motor cable with highest durability
• All Abyzz pumps have a 10 years lifetime warranty after registration - of course, no extra costs!



Specifications	A100 (1,880 GPH)	A200 (4,400 GPH)	A400 (4,800 GPH)
Mass	5 kg
Size	340 x 250 x 140 mm
Maximum flow rate	2,200 GPH or 8,500 lPH	4,400 GPH or 17,000 IPH	6,060 GPH or 25,000 IPH
Rated flow rate	1,880 GPH or 7,300 IPH	3,750 GPH or 14,000 IPH	4,800 GPH or 18,600 IPH
Maximum delivery height	19.5 ft or 6.0 m	31 ft or 9.4 m	45 ft or 13.5 m
Maximum operating pressure	17.4 PSI or 1.2 bar	21.75 PSI or 1.5 bar	17.40 PSI or 1.2 bar
Maximum immersion depth	6.5 ft or 2.0 m	6.5 ft or 2.0 m	6.5 ft or 2.0 m
Connection inlet/ outlet	1.5"/ 1.0" (40mm / 25 mm)	2"/ 1.5" (50mm/ 40mm)	2"/ 1.5" (50mm/ 40mm)
Cable length pump	3.0 m	9.75 ft/ 3.0 m  or 32.5 ft/ 10 m	9.75 ft/ 3.0 m  or 32.5 ft/ 10 m
Power consumption	5...100W
Operating voltage	12 V	200 V	200 V
Ambient temperature	35.6°F - 104°F + 2°C...+ 40°C	35.5°F - 104°F + 2°C - 40°C	35.5°F - 104°F + 2°C - 40°C
