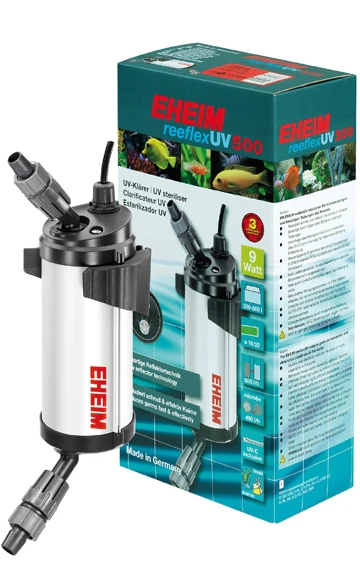

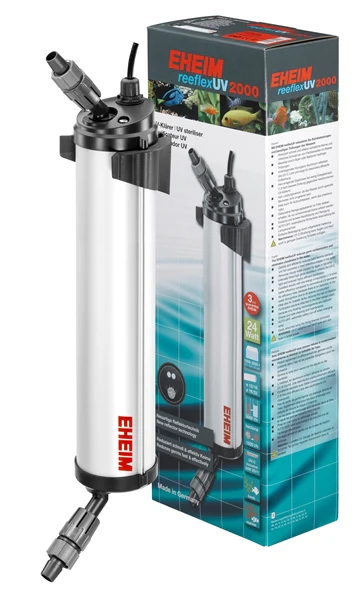

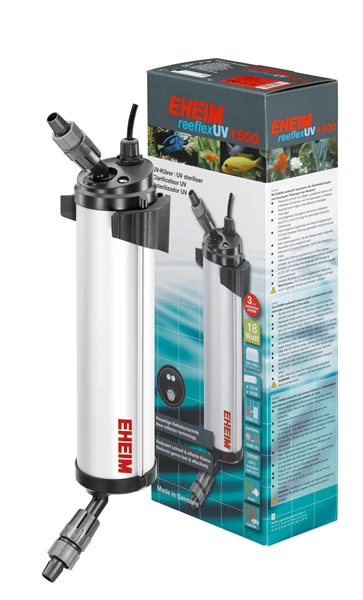

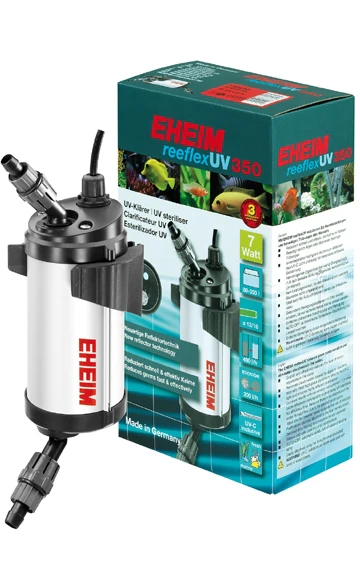

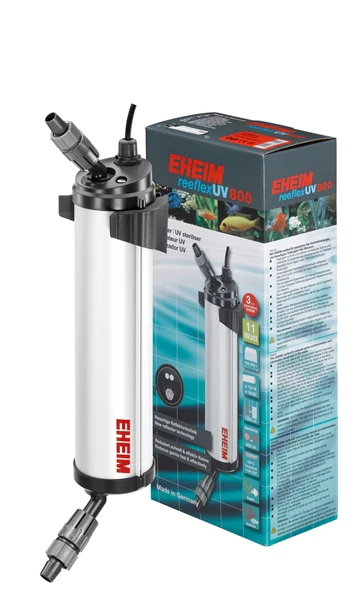

EHEIM reeflexUV UV Sterilizer (350 / 500 / 800 / 1500 / 2000) – Advanced UV-C Clarifier for Crystal Clear, Healthy Aquariums

Improve water clarity and reduce harmful microorganisms with the EHEIM reeflexUV UV Sterilizer, a high-performance UV-C system designed to deliver superior sterilization efficiency with minimal energy use. Engineered with innovative reflector technology and optimized flow design, the reeflexUV series provides clearer water, healthier fish, and improved overall aquarium stability in both freshwater and marine systems.

---

Key Benefits

• Reduces Harmful Bacteria & Fish Parasites
  Targets free-floating bacteria and parasites during their infectious stages, helping reduce disease risk and promote healthier livestock.

• Eliminates Green Water & Cloudiness
  Effectively removes turbidity caused by floating algae and bacterial blooms, resulting in crystal-clear aquarium water.

• High-Efficiency Reflector Technology
  Internal high-gloss aluminum reflector maximizes UV-C exposure by reflecting light through the water from multiple angles—making it up to 1.8× more effective than conventional UV sterilizers.

• Energy Efficient Performance
  Delivers powerful sterilization while maintaining low energy consumption compared to traditional UV units.

• Direct Flow Design – No Performance Loss
  Water flows smoothly around the UV-C lamp without redirection or detours, ensuring consistent sterilization without reduced flow efficiency.

• Safe for Biological Filtration
  Only targets free-floating organisms—beneficial bacteria in your filter media and substrate remain unaffected.

---

Flow Rate Performance

Parasite & Bacteria Reduction (Lower Flow for Maximum Exposure)

• reeflexUV 350: up to 200 l/h

• reeflexUV 500: up to 400 l/h

• reeflexUV 800: up to 600 l/h

• reeflexUV 1500: up to 1000 l/h

• reeflexUV 2000: up to 1500 l/h

Algae & Water Clarification (Higher Flow)

• reeflexUV 350: up to 400 l/h

• reeflexUV 500: up to 800 l/h

• reeflexUV 800: up to 1200 l/h

• reeflexUV 1500: up to 2000 l/h

• reeflexUV 2000: up to 3000 l/h

---

Features & Design

• AUTO-OFF Safety System
  Automatically shuts off when opened to protect against UV-C exposure

• Flexible Installation
  No fixed installation position or flow direction—easily integrates into most aquarium setups

• Complete Installation Kit Included

  • UV-C lamp

  • Ballast with power cable

  • Mounting bracket

  • Hose adapters (12/16 mm and 16/22 mm)

• Durable & Reliable Construction
  Designed for long-term use with a 3-year manufacturer warranty

---

How It Works

The reeflexUV directs aquarium water as a thin film past a UV-C lamp, where ultraviolet radiation neutralizes microorganisms, algae spores, and pathogens. Unlike conventional units that irradiate from one side, the integrated reflector ensures multi-directional UV exposure, significantly increasing sterilization efficiency.

---

🐠 Ideal For

• Freshwater and saltwater aquariums

• Community tanks and high-bioload systems

• Breeding tanks (reduces infection risk for eggs and fry)

• Aquariums experiencing green water or bacterial blooms

• Hobbyists seeking improved water clarity and fish health

---

Specifications



Model:	350	500	800	1500	2000
Depth:	130	130	130	130	130
For aquariums of about.:	80l	300l	400l	700l	1200l
For aquariums up to approx.:	350l	500l	800l	1500l	2000l
Frequency:	50 Hz	50 Hz	50 Hz	50 Hz	50 Hz
Freshwater:	Yes	Yes	Yes	Yes	Yes
Height:	350	380	470	500	560
Manufacturer guarantee:	3 Year(s)	3 Year(s)	3 Year(s)	3 Year(s)	3 Year(s)
Power bei 60 Hz min.:	7 Watt	9 Watt	11 Watt	15 Watt	24 Watt
Pressure max. at 50 Hz:	0.8 bar	0.8 bar	0.8 bar	0.8 bar	0.8 bar
Saltwater:	Yes	Yes	Yes	Yes	Yes
Width:	115	115	115	115	115

---

Why Choose the EHEIM reeflexUV?

The EHEIM reeflexUV stands out with its superior UV efficiency, smart flow design, and built-in safety features, making it one of the most effective and user-friendly UV sterilizers available. By reducing harmful microorganisms while preserving beneficial bacteria, it creates a healthier, more balanced aquarium environment without altering water chemistry.
