Description

The economical PVC plastic wire duct can be cut to any length. Each wire duct includes a cover to provide 360 protection.

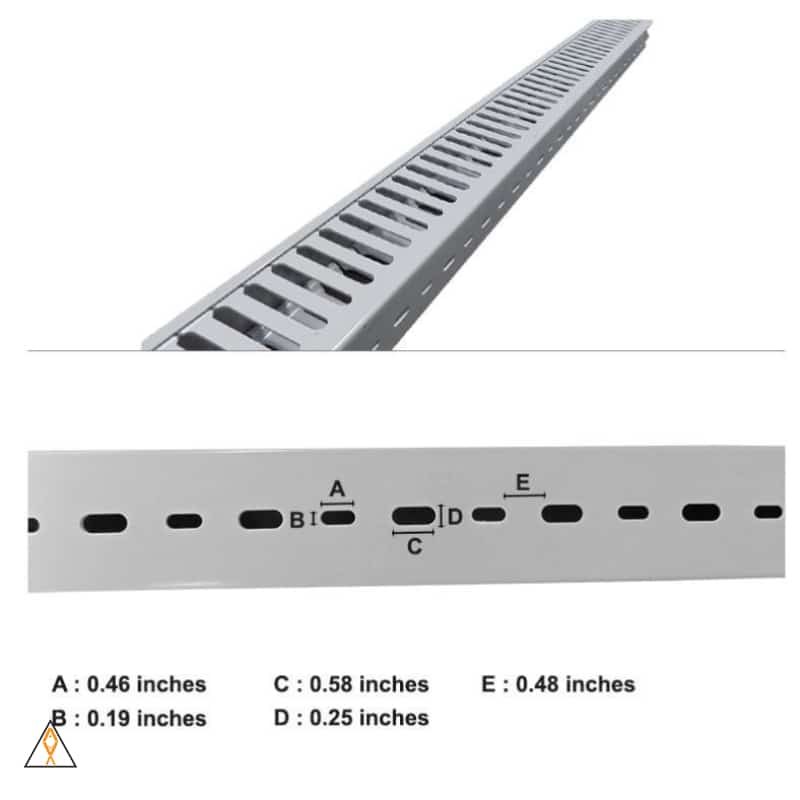

Pre-Drilled Holes: There are 2 holes, 1 small and 1 large. From their center point, they are 1 apart. Every 4 to 5 are another set of pre-drilled holes and these holes run the entire length of the wire duct.

Variant name	Width x Height (inches)	Pieces	Total Feet
200-200	2 x 2	25 (full case)	164
300-300	3.15 x 3.15	10 (full case)	66
400-200	4 x 2	6 (half case)	39

• Small Hole: 0.46"H x 0.19"W
• Large Hole: 0.58"H x 0.25"W
• Distance between holes: 0.48

Features

• Wire Duct is pre-drilled and comes with covers
• Made from PVC (gray), offers good insulation
• Normal working temperature: -25 °C to 70 °C
• Heat-resistant up to 85 °C
• Flammability: UL94 V-2 rated material
• Can easily be cut using a wire duct cutter

Specifications

Variant name	Wire Duct Size	Finger Height	Finger Width	Distance between Fingers
200-200	2 x 2	1.06"	0.3"	0.36"
300-300	3.15 x 3.15	2.45"	0.31"	0.31"
400-200	4 x 2	2.5"	0.37"	0.37"
